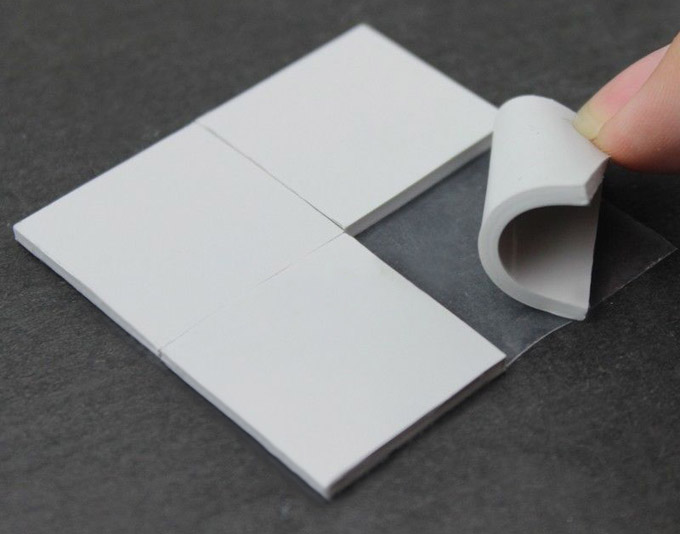

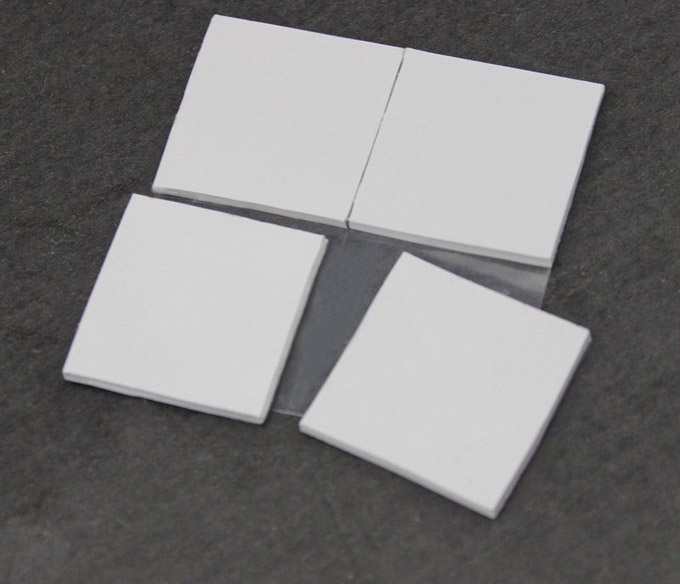

New developing Thermal Pad（Thermal GAP PAD）
We are pleased to inform our New developing UL94-V0 Thermal Pad 1.0W/MK , 1.5W/MK , 2.0W/MK, 3.0W/MK, 4.0W/MK, Thickness: 0.23mm, 0.3mm, 0.45mm .
A) P/N : GP-1 (F)
a-1) No adhesive
1.5W/mK - 0.23 T / 0.30 T /0.45T
1.0W/mK - 0.23 T / 0.30 T /0.45T
2.0W/mK - 0.23 T / 0.30 T /0.45T
a-2) With adhesive
1.5W/mK - 0.23 T / 0.30 T /0.45T
1.0W/mK - 0.23 T / 0.30 T /0.45T
2.0W/mK - 0.23 T / 0.30 T /0.45T
PROPERTY | VALUE | METHOD |
SIZE (mm) | ±1 | JIS K6250 |
Thickness (mm) | 0.23±0.1 | JIS K6250 |
SPECIFIC GRAVITY | 2.02±0.1 | JIS K6833 |
HARDNESS (Asker-C) | 30±5 | JIS K7312 |
THERMAL CONDUCTIVITY (w/m*k) | More than 1.5 | LFA447 Nanoflash |
SHEARING STRENGTH (kgf/25㎜) | More than 7 | JIS K6850 |
Flammability | UL94-V0 | QMFZ2.E245303 |
Restriction of Hazardous Substances | RoHS, Non Halogen | SGS |
Continue Use Temp. (℃) | -50 ~ +200 |
B) P/N : KGP-1 (F)
b-1) No adhesive
1.5W/mK - 0.23 T / 0.30 T /0.45T
1.0W/mK - 0.23 T / 0.30 T /0.45T
2.0W/mK - 0.23 T / 0.30 T /0.45T
b-2) With adhesive
1.5W/mK - 0.23 T / 0.30 T /0.45T
1.0W/mK - 0.23 T / 0.30 T /0.45T
2.0W/mK - 0.23 T / 0.30 T /0.45T
New TP300 gap filler material is available in 200 x 400 mm sheets or die-cut parts. Standard sheet thicknesses range from 0.5 to 5.0 mm (0.020 in to 0.196 in). Pricing for standard flat TP300 sheets starts at $0.10 per square inch, which is below the cost of other 3.0 W/mK thermal gap fillers now available. Lower priced TP-200/100 materials are also available with thermal conductivities of 2.0 and 1.0 W/mK.
PROPERTY | VALUE | METHOD |
SIZE (mm) | ±1 | JIS K6250 |
Thickness (mm) | 0.23±0.1 | JIS K6250 |
SPECIFIC GRAVITY | 2.28±0.1 | JIS K6833 |
HARDNESS (Asker-C) | 80±5 | JIS K7312 |
THERMAL CONDUCTIVITY (w/m*k) | More than 2.0 | LFA447 Nanoflash |
SHEARING STRENGTH (kgf/25㎜) | More than 7 | JIS K6850 |
Flammability | UL94-V0 | QMFZ2.E245303 |
Restriction of Hazardous Substances | RoHS, Non Halogen | SGS |
Continue Use Temp. (℃) | -40 ~ +150 |
Feel free to get in touch with us if you have any question or further requests.
Sincerely Yours,
